Maximum Load Capacity : 15 Ton
Min/Max distance between Flanges – 2500/3500 mm
Centre height over Machine Bed – 1500 mm
Operating Speed (RPM) : Winding Rpm – 3 - 10 rpm infinitely variable within the range
- Conductor Compatibility: Copper, Paper-covered conductor, CTC, Foil coils, etc.

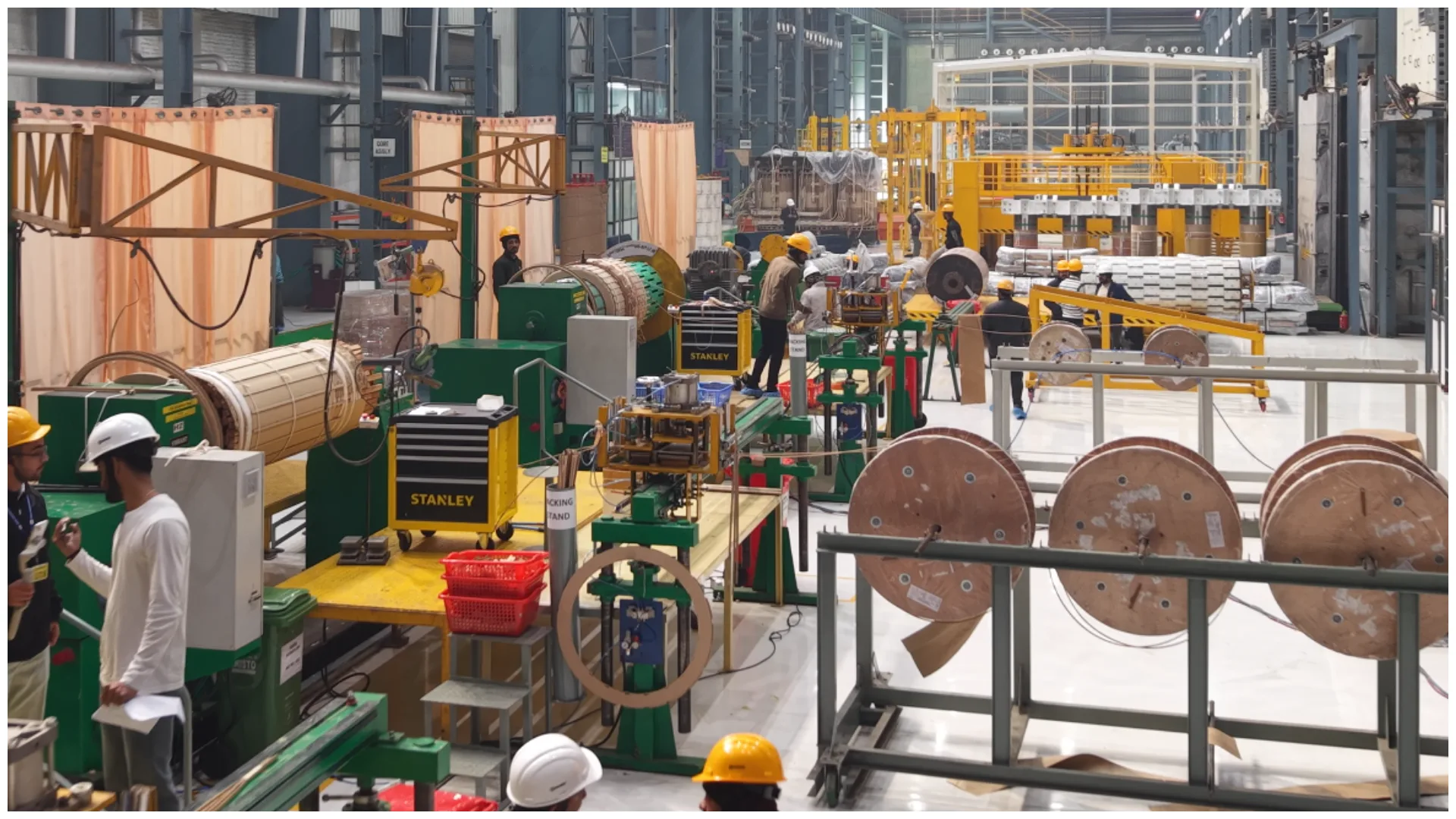

- The Horizontal Winding Machine is engineered for precision winding of LV/HV coils used in power transformers, ensuring high dimensional accuracy and consistent electrical performance.
- It is designed to handle a wide range of coil sizes with a robust mechanical structure and advanced control features.
